New doctorate's building by Steven Holl
National University of Colombia, Bogota, Colombia
October 2010
The importance of the National University of Colombia campus began with its enlightened master plan by the architect Leopold Rother in the 1930s. With its green center, classical axiality, and layered concentricity, the campus contains some wonderful examples of architecture.
|
|
|
|
|
We envision the new Doctorate's Building re-energizing the original master
plan, shaping campus green space. While buildings of the 1970s clogged the
inner green of the original master plan, our new building aims to turn that
closure inside out, re-establishing green space definitions.

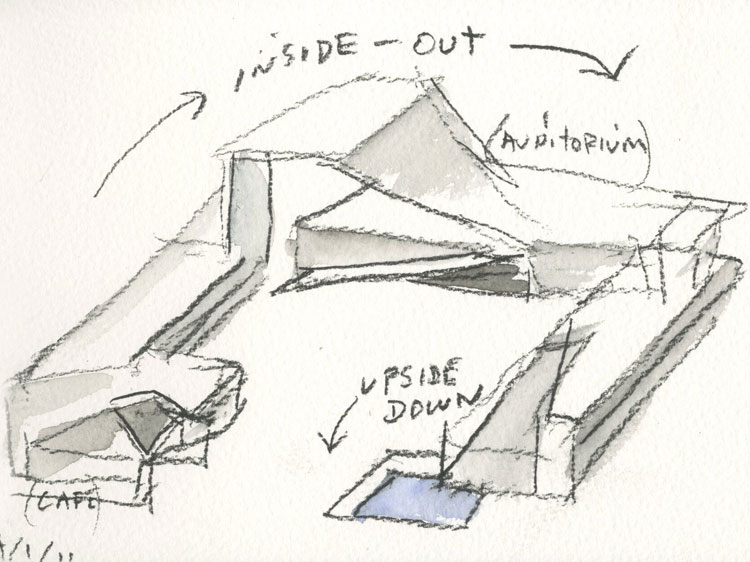

The moderate climate of Bogota (cool summers and temperate winters) allows for
space turned "inside out" to be at the heart of the new building
section. The life of the school, with students moving back and forth on
exterior walks, is evident in this central open social space.

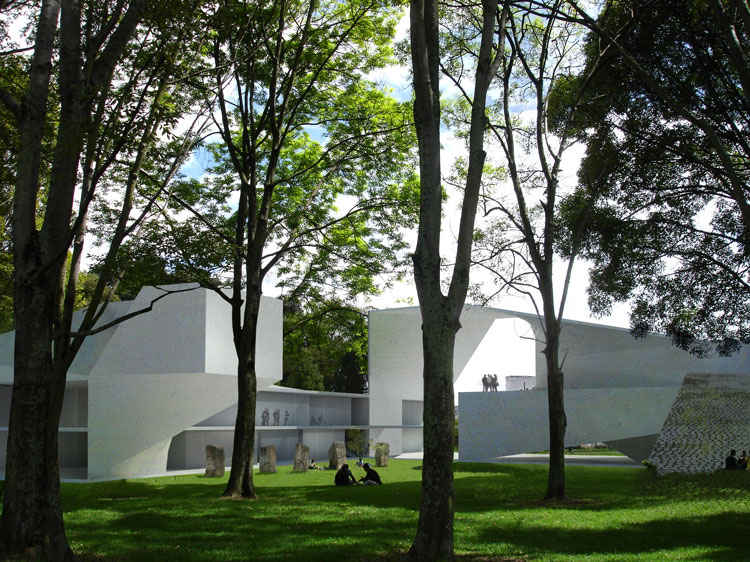

The 6400sm two-story building rises in section at the main gathering space.

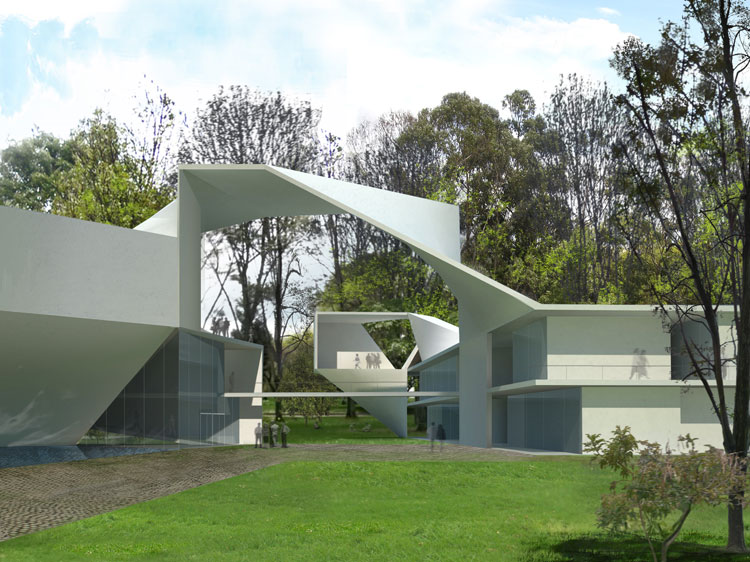

From the building's 600-seat auditorium, a roof begins to warp upwards, shaping
a campus gate-like pergola. Here sun-protected social space is aligned to one
of the original diagonals of the Rother plan. The campus entry approaches and
the central axis are linked in the new building and its green space, opening up
new porous routes of movement.
The south arm of the building rises up in a cantilevered restaurant with roof
terraces and mountain views. The north arm turns down into the landscape
opening to an "upside-down" portion, shaping a grotto water garden. A
continuous flow of rain water and grey water are linked in this lower basin; a
reflecting pool at the auditorium emits the sound of slowly pouring water.
The water recycle system is driven by solar photovoltaic cells on the roof,
which also provide 15% of the electrical power for the new structure.
High-performance reinforced concrete joins local woods and Bogota stone in a
palette of material resonance and ecological innovation
PROGRAM: classrooms, offices, lab space, study rooms, cafe, restaurant,
auditorium, and sculpture garden
CLIENT: National University of Colombia, Bogota
BUILDING AREA (SQUARE): 70,000 sq ft
STATUS: design phase
CREDITS
Architect: Steven Holl Architects
Steven Holl, Chris McVoy, Garrick Ambrose (design architects)
Chris McVoy (partner in charge)
Garrick Ambrose (project architect)
Scott Fredricks, Johanna Muszbek, Dimitra Tsachrelia (project team)
